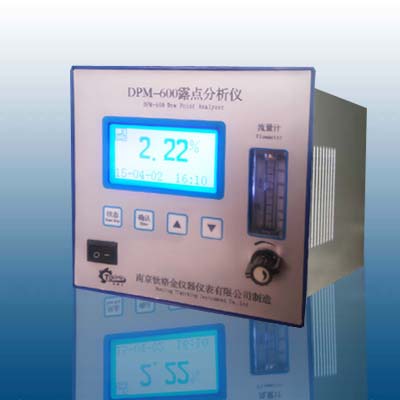

DPM-600 intelligent dew point analyzer adopts imported capacitive dew
point sensor and |
|
microprocessor technology, with
large screen LCD display, self check, self correction, and other |
|
functions; It can directly
measure atmospheric dew point and absolute moisture. The instrument
|
|
consists of a built-in fully
compensated dew point sensor, a microcomputer controlled |
|
measurement circuit, a large
screen dot matrix LCD display, a built-in rotameter, and a four-way
|
|
reversing protection valve.
Integrated structure, the entire instrument is installed in a single
|
|
instrument casing, making it
very easy to carry and operate. The detection component of the |
|
DPM-600 intelligent dew point
analyzer is a complete set of dew point sensing and detection |
|
systems composed of imported
thermal polymer capacitive dew point sensors and micro |
|
platinum resistors, and has a
temperature compensation function. After calculation and correction
|
|
by a microprocessor, the dew
point sensor is accurately compensated and corrected, resulting in
|
|
a dew point measurement
accuracy of ± 2.0 ℃ and a resolution of 0.1 ppm. It is applicable to the
|
|
detection of trace water in
air, nitrogen, hydrogen, argon, and other gases. This product can be
|
|
replaced by domestic dew point
sensors. |
|
◆Imported capacitive humidity sensor with self calibration technology
and long calibration cycle |
|
◆Large screen LCD dot matrix display, Chinese menu type function
selection |
|
◆Low
maintenance, anti-condensation, rapid response |
|
◆The signal transmitter with a new microprocessor is very convenient to
operate |
|
◆Automatic storage of measurement data, with paperless recorder function |
|
◆Unique
air path design, with good air tightness, impermeability, and water
absorption resistance |
|
◆Switching display between dew point temperature and moisture ppm value,
no need to check the table for calculation |
|
◆Measurement dew point upper and lower limit alarm arbitrary setting,
communication 4-20MA output |
|
Measuring range：-80℃~+20℃（Atmospheric
dew point） |
Basic error :≤±2℃ |
|
Temperature coefficient：<0.2℃/℃ |
Repetitiveness :
≤±1℃ |
|
Sample gas pressure：10kpa～0.5Mpa |
Measuring medium：N2、Ar、惰性气体等 |
|
Storage temperature：-40℃~+50℃ |
Sample gas flow：400-600ml/min |
|
Voltage﹕AC220V + 10%; 50Hz |
Environment condition﹕0—50℃;相对湿度<
90% |
|
Enclosure protection：Metal
shell painting |
Power dissipation :
AC220V，＜20W，fuse3A |
|
Overall dimensions：145×145×250mm（wide
× high × deep） |
Hole size：138mm×138mm（wide
× high） |
|
Dust protection：10
micron head filter protective cover |
Calibration cycle：12
months |
|
Service life：>24
months（Normal
use conditions） |
Instrument weight：3kg |
|
Output signal:4-20mA(Load
resistance＜750Ω),Output indication gear:+20℃～-80℃ |
|
Alarm settings:Upper or lower alarm limit+20℃～-80℃Internal
arbitrary setting |
|
|
